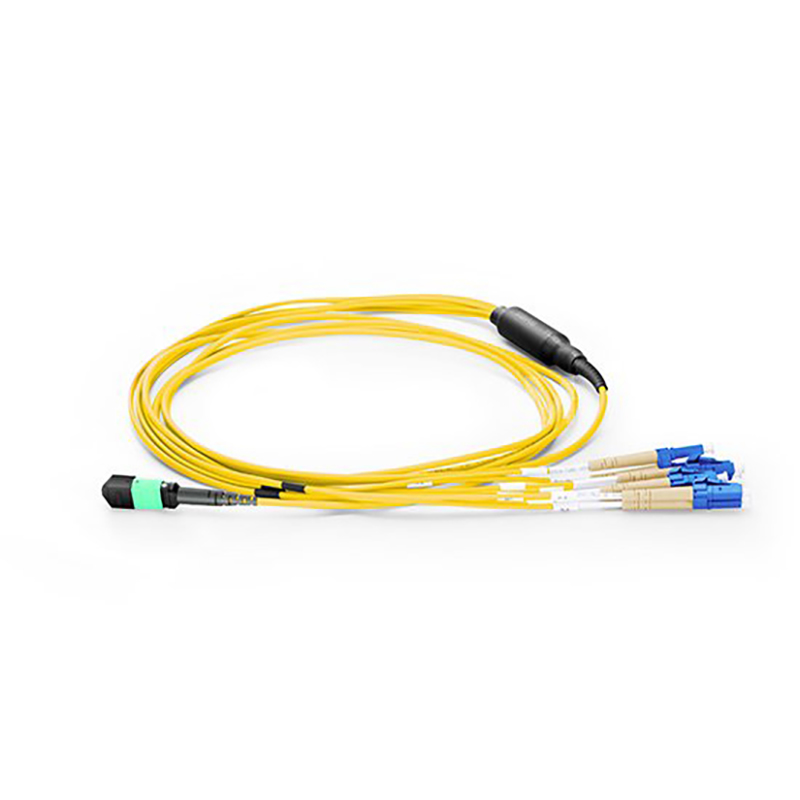

UPONCOMM Breakout cable?is factory pre-terminated 50/125 Multimode OM3/OM4?MPO to 4xLC Duplex fiber harness cable, which offers the user the advantage of consistent quality, much faster installation, and simpler cable management. The cable comprised of one MPO female connector and 4 LC UPC duplex fiber connectors on the other end. It can provide a different fan-out length which is convenient for device connection.
| Connector A | MPO Female (pinless) |
| Connector B | LC UPC (4) |
| Jacket OD | 3.0 mm |
| Fiber Type | OS2 9/125 SMF |
| Fiber Count | 8 |
| Wavelength | 1310nm |
| Cable Length | 3M |
| Insertion loss, max. | MPO IL≤0.35dB |
| Return Loss,min. | MPO≥55dB, LC≥50dB |
| Durability | ≥500 times |
| Jacket Material | LSZH |
