Over view:

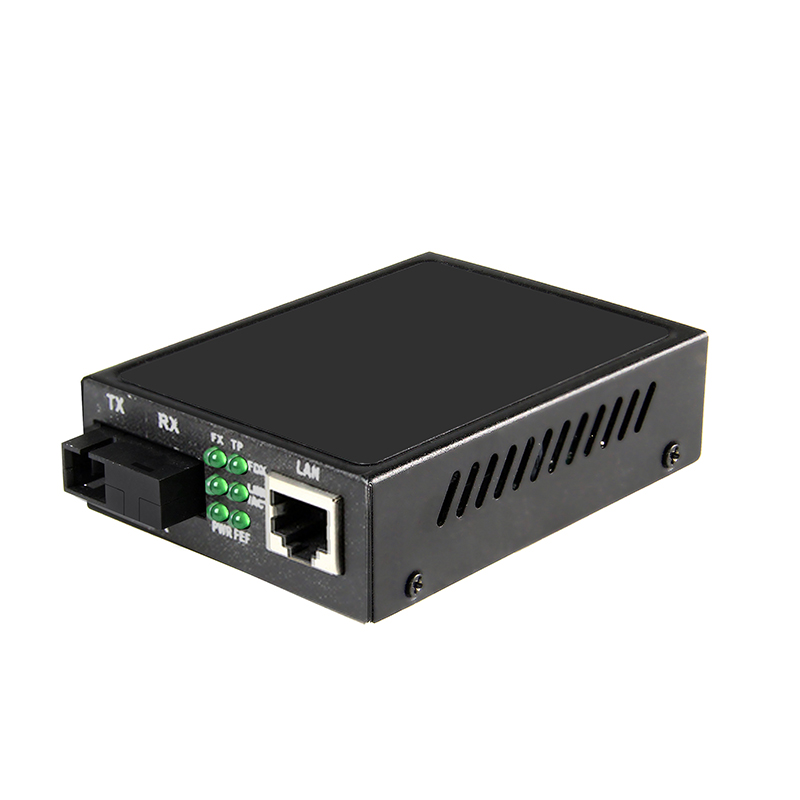

UPONCOMM UM-EMA101-xx Serial 10/100M Fiber Media Converter translates the signal from a twist-pair 10/100/1000Base-TX cable to 100Base-FX fiber optic cable, extends data transmission distance from 100m via copper cables to 120km by fiber optic cable
- 10/100Mbps auto-sensed, easily upgrade
- full-duplex and half-duplex auto-sensed
- MDI/MDI-X Auto Negotiation
- 10/100Mbps store-and-forward
- 100Mbps cut-through transmission
- Packet size up to1518bytes
- Supporting VLAN / VoIP /QoS packets
- Support flow control and reduce broadcast packets
- Supporting STP to form a redundant network
- Extremely low power consumption, low heat, stable performance
- Providing Desktop, Wall-mounted, Chassis, DIN-rail installation
Key Prameter
| Device Type | Unmanaged |
| Data Rate | 10/100Mbps |
| Wavelength | TX1310/RX1550nm |
| Fiber Interface | 1x 10/100/1000Base-FX |
| UTP interface | 1x 10/100/1000Base-TX |
| Connector | Single SC |
| Reach | 40km |
| Form Factor | Stand-alone |
| Standard | IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet |
| Data Rate | Copper: 10/100M; Fiber: 155M |
| Flow control | Full duplex: flow control; Half duplex: back pressure |
| Copper Port | No.s of Copper Port: 1 Connector: RJ45 Connector Distance:100m |
| Fiber Port | No.s of Fiber Port: 1 Connector: SC as default, FC/ST optional Wavelength: MMF 1310nm, SMF: 1310nm, Bi-di 1310/1550nm Distance: MMF 2Km, SMF 20/40/80/100/120Km, Bi-di 20/40/80/100Km |
| LED indicators | PWR (power supply); FL/A (optical link/action) FDX (FX full duplex), TL/A (twisted pairs link/action) 100 (100M transmission rate of twisted pairs), FX (100M transmission rate of optical fiber) |
| Power supply | Working power: DC5V 1A AC Power Supply: 100V~ AC240V to 5V1A Or DC Power Supply: -36~-72V to 5V1A External / Internal Power Supply Optional |
| Power consumption | <3W |
| Environment | Operating temperature : -10~55℃ Storage Temperature: -40~85℃br />Relative Humidity: 5% to 95% non-condensing |
| Dimensions | External: 94mmx70mm*26mm Internal: 140mmx110mmx30mm |
| Gross Weight | External : 0.4kg Internal: 0.5kg |
